Published: February 23, 2026
By: Zhen Liu, Copper Alloys Technical Expert at Cymber Metal
Hello everyone, Zhen Liu here — the copper alloys specialist at Cymber Metal.
After years of working with high-performance copper materials on the shop floor, I can confidently say that Chromium Zirconium Copper (CuCrZr, also known as C18150 or CW106C) is one of the smartest choices we offer for tough industrial environments. It delivers the rare combination of high electrical and thermal conductivity with significantly improved strength and heat resistance compared to pure copper.
In 2026, with industrial equipment running hotter, welding lines operating faster, and motors demanding longer service life, CuCrZr has become a true workhorse in factories, power plants, and heavy machinery. We’ve machined and supplied thousands of tons of it here at Cymber Metal for welding electrodes, motor components, and high-temperature fittings.
This guide shares everything I’ve learned from real production: the main grades, where CuCrZr excels in industrial applications, machining tips, challenges we’ve solved, and practical advice from daily work.
CuCrZr Grade Overview for Industrial Use
Here’s the practical comparison we use when customers ask for recommendations in industrial projects:
| Grade | Chromium | Zirconium | Conductivity (% IACS) | Tensile Strength (aged) | Best Industrial Applications | Relative Cost |
|---|---|---|---|---|---|---|
| C18150 | 0.5–1.5% | 0.05–0.25% | 80–90 | 500–550 MPa | Resistance welding electrodes, motor rotors, high-temperature fittings | Medium |
| C18200 | 0.6–1.2% | — | 75–85 | 520–580 MPa | Heavy-duty electrodes, commutators, industrial contacts | Medium |
| CW106C (EU) | 0.5–1.2% | 0.03–0.3% | 78–88 | 480–550 MPa | European-standard motors, generators, power equipment | Medium |
Quick Recommendation from the Shop: C18150 is our most requested grade for industrial use — it offers the best overall balance of conductivity and strength for welding and motor applications.
Where CuCrZr Shines in Industrial Applications
From our daily production, these are the main industrial areas where CuCrZr delivers outstanding performance:
- Resistance Welding & Spot Welding Equipment Electrodes and tips that last much longer under high heat and pressure — the #1 industrial application.
- Electric Motors & Generators Rotor bars, commutators, and high-current contacts in large industrial motors that run continuously.
- High-Temperature Industrial Furnaces & Heaters Components that must maintain conductivity at elevated temperatures.
- Power Generation & Transmission Equipment Busbars and connectors in heavy-duty generators and transformers.
- Molds & Tooling for Plastic & Metal Forming Where high thermal conductivity and wear resistance are needed.
- Heavy Machinery & Mining Equipment Wear-resistant, high-conductivity parts in harsh operating conditions.
-
Machining Challenges & Real Solutions for Industrial Parts
CuCrZr is harder than pure copper, so it requires different handling:
- Higher cutting forces → Needs rigid machines and setups.
- Tool wear → Chromium particles are abrasive.
- Heat management → Must avoid over-aging during machining.
Engineering Experience: In our recent industrial motor projects at Cymber Metal, machining C18150 rotor bars showed faster tool wear on long production runs. We switched to coated carbide inserts with high-pressure through-tool coolant and adjusted speeds — tool life increased by nearly 60%, and we consistently held ±0.01 mm tolerances even on large batches.
Pro Tip: Machine in the solution-annealed state when possible, then age the finished parts — much easier cutting and you get full strength at the end.
-
Design & Tooling Recommendations for Industrial Use
- Tolerances: ±0.01 mm achievable with proper tooling.
- Radii: Generous to reduce stress during aging.
- Heat Treatment: Solution anneal + aging (450–500°C) after machining.
- Tool Material: Coated carbide or PCD for volume production.

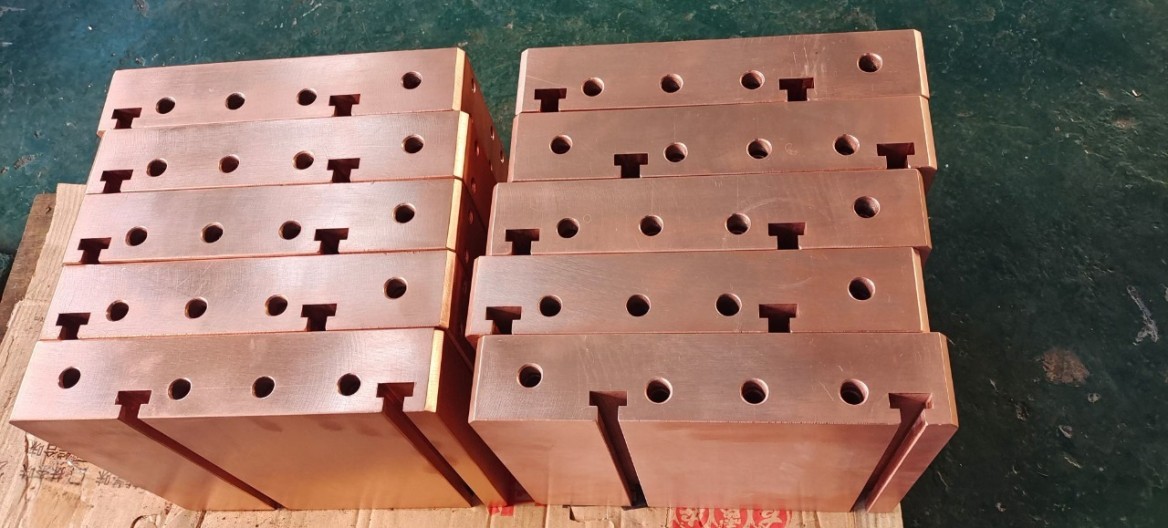

Common Deliverable CuCrZr Industrial Products We Machine

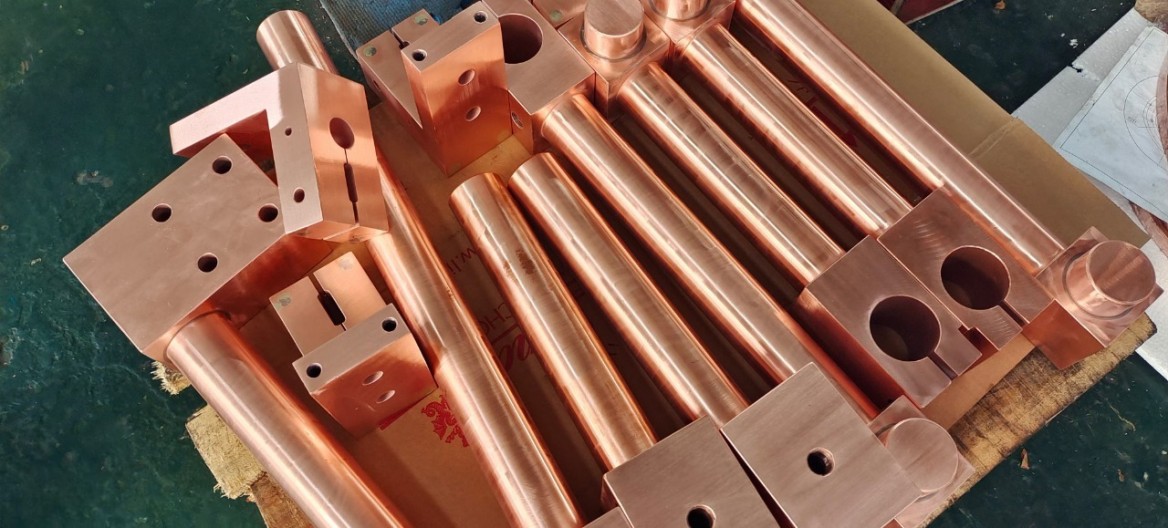

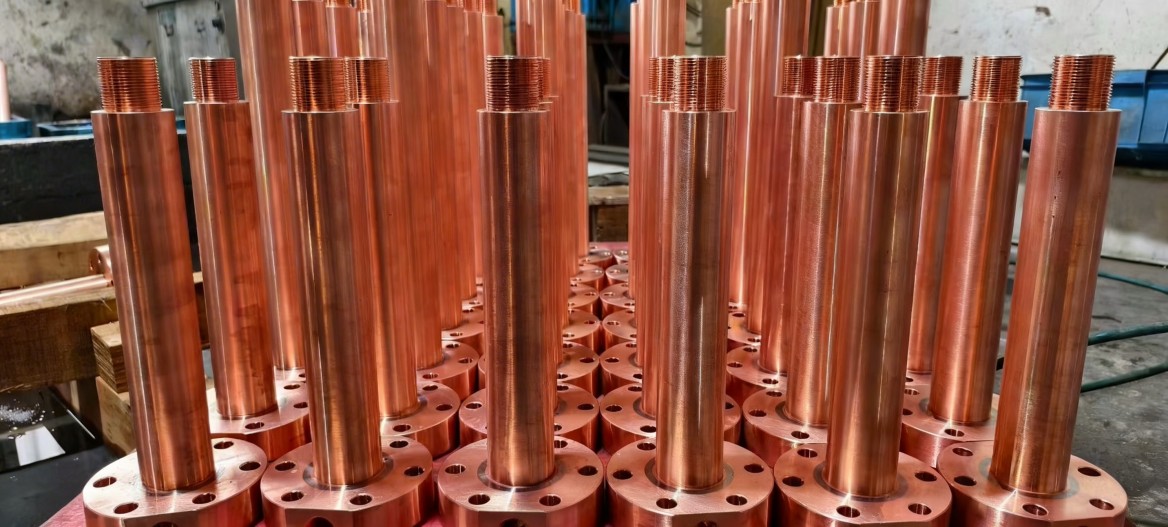

- Resistance welding electrodes and shanks
- Motor rotor bars and commutator segments
- High-temperature industrial contacts
- Heavy-duty busbars and connectors
- Mold inserts for high-wear applications
Final Thoughts
Chromium Zirconium Copper solves the classic trade-off between conductivity and strength in demanding industrial environments — making it one of the smartest material choices for modern manufacturing.

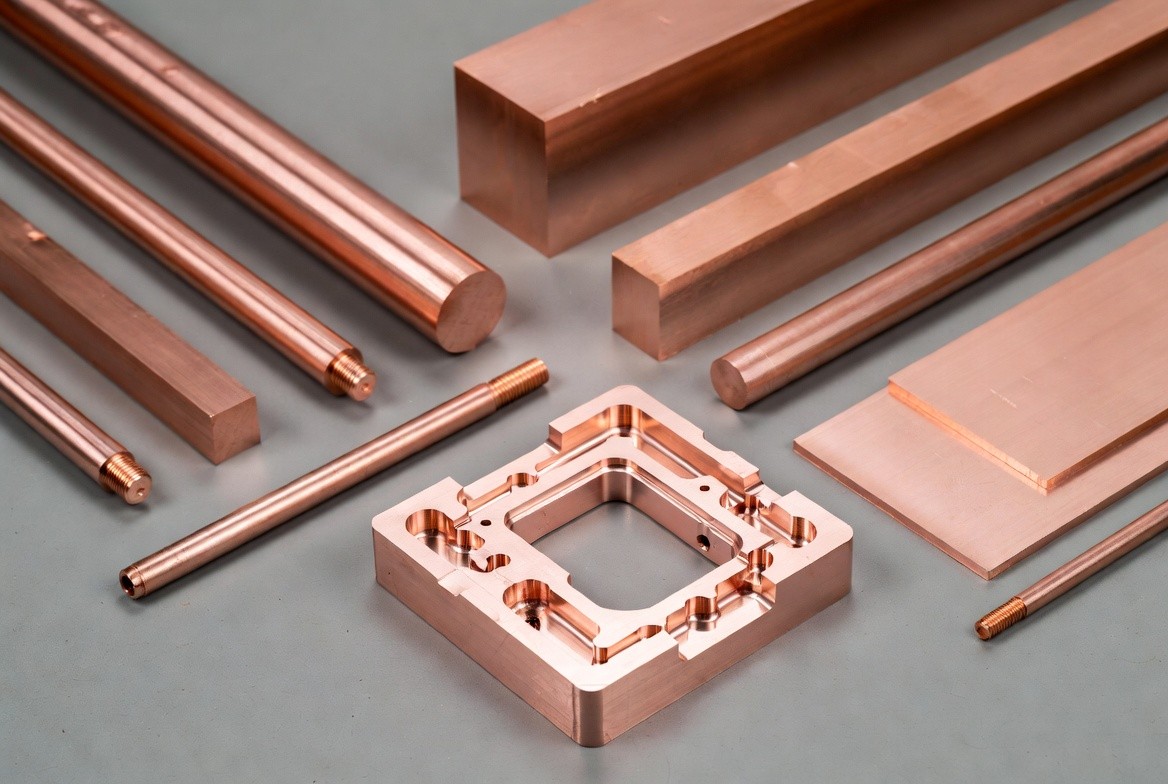

At Cymber Metal we stock and machine a full range of CuCrZr products for industrial applications:
- Chromium Zirconium Copper Rods
- Chromium Zirconium Copper Square Bars
- Chromium Zirconium Copper Plates
- Chromium Zirconium Copper Sheets
- Custom CNC Machined CuCrZr Parts
You’re also welcome to visit our CYMBER Zhejiang Large-Scale Copper & Aluminum Integrated Warehouse to see our full stock and production capabilities.
If you have an industrial project involving CuCrZr — whether welding electrodes, motor components, or custom high-strength parts — I’d be happy to help you choose the right grade and machining process.
Ready to discuss your project? Download our latest CuCrZr catalog or contact our team directly.
