Published: February 22, 2026
By: Zhen Liu, Copper Alloys Technical Expert at Cymber Metal
Hello everyone, Zhen Liu here again — the copper alloys guy at Cymber Metal.
After years of working with high-performance copper materials, I can tell you that Chromium Zirconium Copper (CuCrZr, also known as C18150 or CW106C) is one of the most impressive alloys we produce. It gives you the best of both worlds: excellent electrical and thermal conductivity (80–90% IACS) combined with significantly higher strength and heat resistance than pure copper.
In 2026, with EV motors running hotter, resistance welding lines operating at higher speeds, and industrial equipment demanding longer service life, CuCrZr has become a true “workhorse” material. We’ve machined thousands of tons of it here at Cymber Metal for welding electrodes, EV rotor bars, and high-power connectors.
Today I’ll share everything I’ve learned from real production: the main grades, where CuCrZr shines in 2026, machining tips, challenges we’ve solved, and practical advice from the shop floor.
CuCrZr Grade Overview and Comparison
Here’s the practical comparison we use when customers ask which grade to choose:
| Grade | Chromium | Zirconium | Conductivity (% IACS) | Tensile Strength (aged) | Best Applications | Relative Cost |
|---|---|---|---|---|---|---|
| C18150 | 0.5–1.5% | 0.05–0.25% | 80–90 | 500–550 MPa | Resistance welding electrodes, EV rotors | Medium |
| C18200 | 0.6–1.2% | — | 75–85 | 520–580 MPa | Heavy-duty electrodes, commutators | Medium |
| CW106C (EU) | 0.5–1.2% | 0.03–0.3% | 78–88 | 480–550 MPa | European-standard motors & generators | Medium |
Quick Recommendation from the Shop:
C18150 is our most popular choice — it offers the best overall balance of conductivity and strength for most welding and EV motor applications.
Where CuCrZr Is Used in 2026
From our daily production, these are the main areas where CuCrZr delivers outstanding performance:

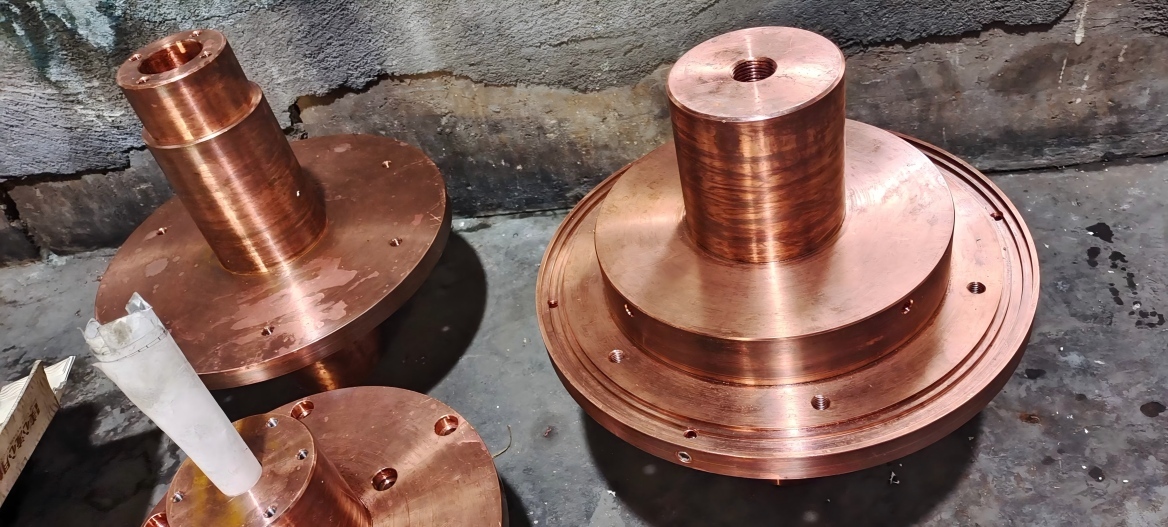

- Resistance Welding Electrodes & Tips The #1 application — longer life, consistent welds, and resistance to softening at high temperatures.

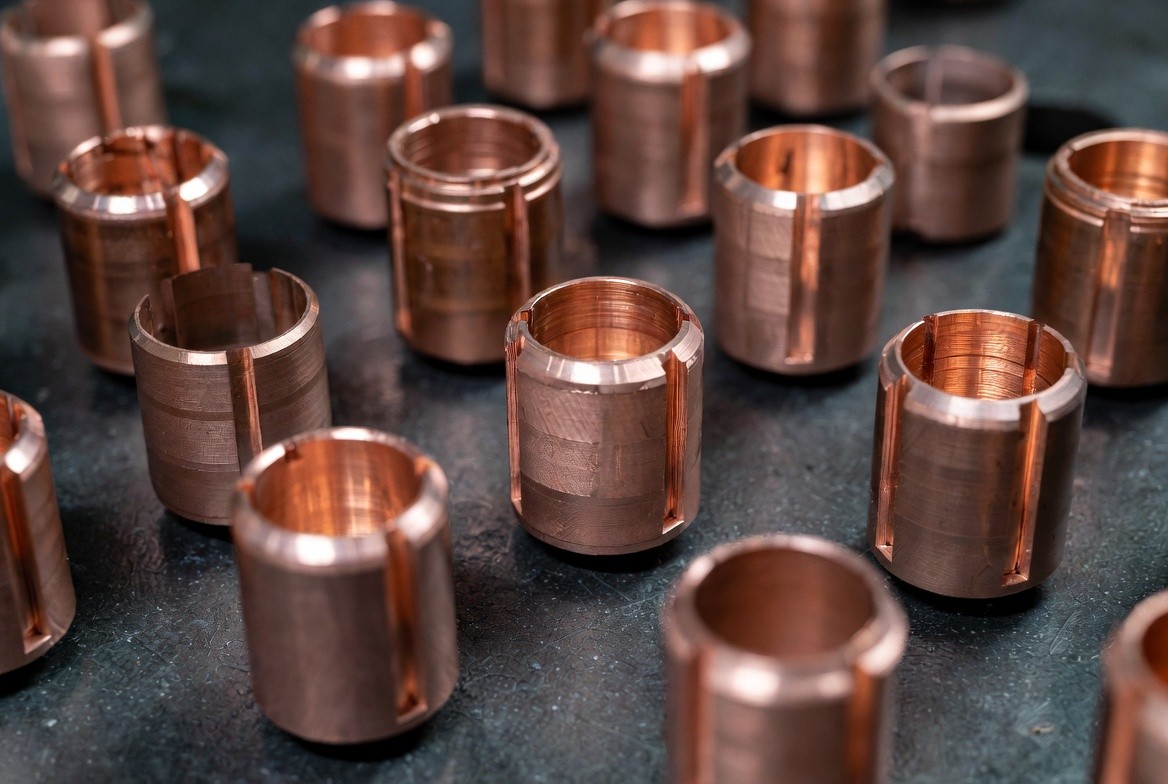

- Electric Vehicle Traction Motors Rotor bars and high-current connectors in high-performance EV motors — handles high RPM and heat without losing strength.
- High-Power Electrical Connectors For 800V+ charging systems and battery interconnects.
- Industrial Commutators & Slip Rings In large motors and generators that run continuously.
- Aerospace & Defense Power Systems Where both conductivity and mechanical strength are non-negotiable.
-
Machining Challenges & Real Solutions
CuCrZr is harder than pure copper, so it behaves differently:
- Higher cutting forces → Needs rigid setups.
- Tool wear → Abrasive chromium particles.
- Heat management → Must avoid over-aging during machining.
Engineering Experience: In our recent EV motor projects at Cymber Metal, machining C18150 rotor bars showed accelerated tool wear on long production runs. We switched to coated carbide inserts with high-pressure through-tool coolant and reduced depth of cut — tool life increased by nearly 60%, and we held ±0.01 mm tolerances consistently.
Pro Tip: Machine in the solution-annealed state whenever possible, then age the parts afterward — much easier cutting and you get full strength at the end.
-
Design & Tooling Recommendations
- Tolerances: ±0.01 mm achievable with proper tooling.
- Radii: Generous to reduce stress during aging.
- Heat Treatment: Solution anneal + aging (typically 450–500°C) after machining.
- Tool Material: Coated carbide or PCD for volume production.
Common Deliverable CuCrZr Products We Machine

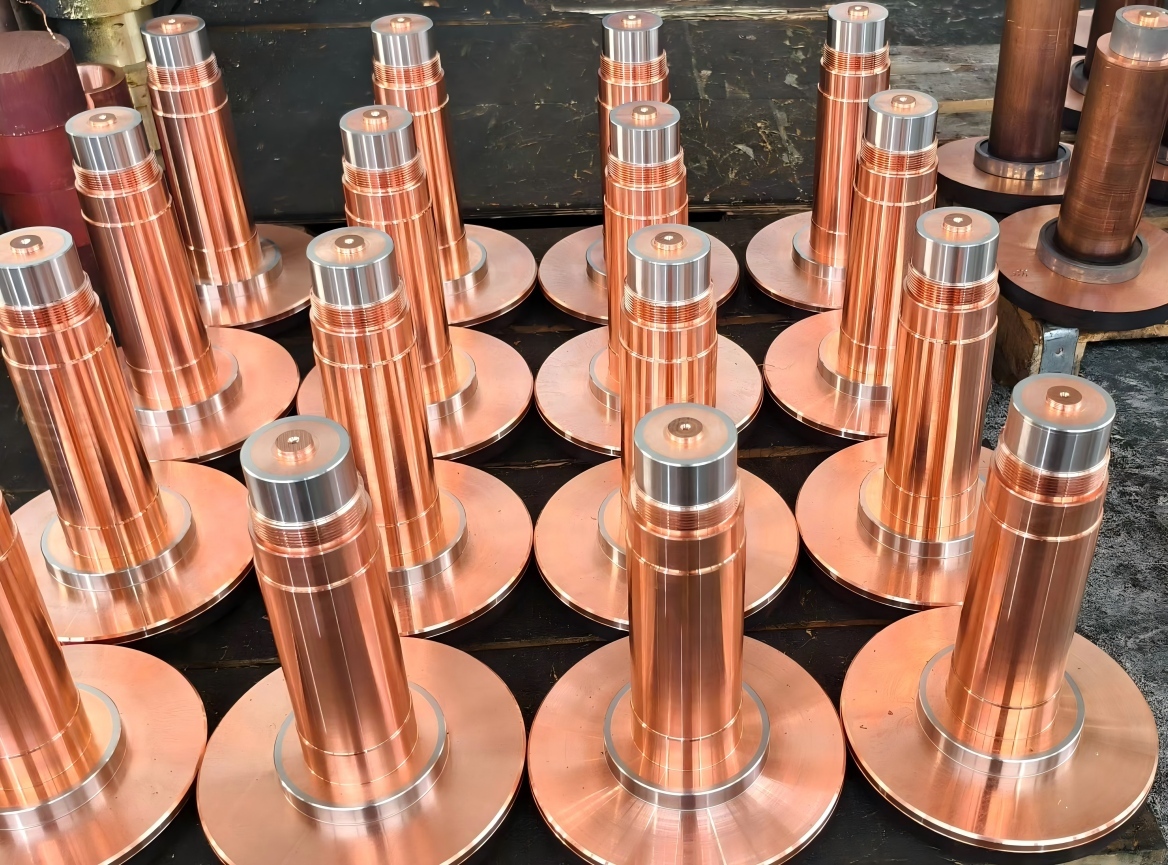

- Resistance welding electrodes and tips
- EV traction motor rotor bars
- High-power electrical connectors
- Commutator segments
- Custom machined high-strength parts
Final Thoughts
Chromium Zirconium Copper (CuCrZr) solves the classic trade-off between conductivity and strength — making it one of the smartest choices for modern high-performance electrical systems.

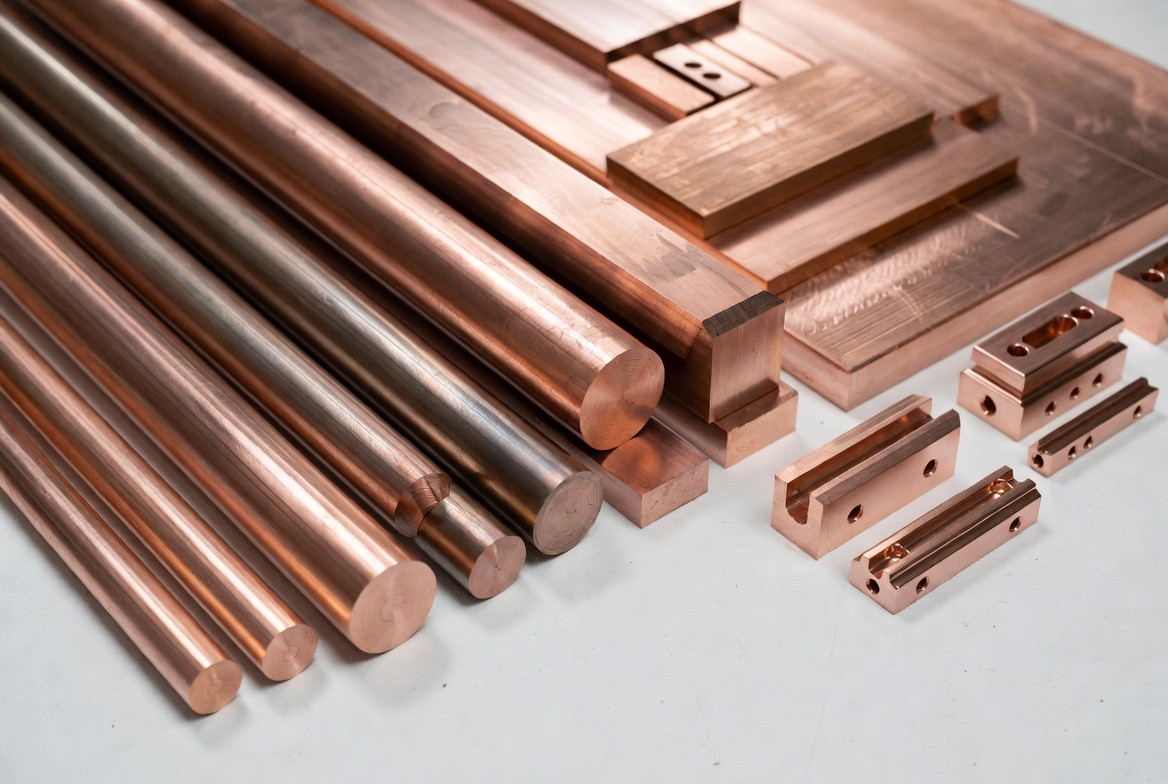

At Cymber Metal we stock and machine a full range of CuCrZr products:
- Chromium Zirconium Copper Rods
- Chromium Zirconium Copper Square Bars
- Chromium Zirconium Copper Plates
- Chromium Zirconium Copper Sheets
- Custom CNC Machined CuCrZr Parts
You’re also welcome to visit our CYMBER Zhejiang Large-Scale Copper & Aluminum Integrated Warehouse to see our full stock and production capabilities.
If you have a project involving CuCrZr — whether welding electrodes, EV motor components, or custom high-strength parts — I’d be happy to help you choose the right grade and machining process.
Ready to move forward? Download our latest CuCrZr catalog or contact our team directly.
