Custom Phosphor Bronze Parts: Wear and Spring Design

Material Selection for Wear Resistance, Spring Performance and Custom Manufacturing



Publication Date: July 31, 2026
Author: Hu Yanwei, Cymber Metal Technical Expert

Stop specifying “phosphor bronze” as if it were one material.

A stamped electrical clip, a CNC-machined bushing and a wear plate may all be described as phosphor bronze parts. They do not need the same alloy, temper, stock form or manufacturing route.

Buyers frequently choose C52100 because it looks stronger on a datasheet. Then the stamping supplier reports excessive springback, edge cracking or shorter die life. Others select soft C51000 because it forms easily, only to discover that the finished spring takes a permanent set during assembly.

A small material-price difference has now become a tooling problem.

Quick answer: Select custom phosphor bronze parts by function—not by alloy name alone. C51000 generally offers a practical balance of formability, conductivity and spring performance. C51900 can provide higher strength and wear resistance with moderately more difficult forming. C52100 is commonly considered when higher spring strength and wear resistance justify lower conductivity and tighter process control. The purchase order must also define temper, grain direction, dimensions, edge condition, functional testing and inspection requirements.

Buyers reviewing available alloy families can begin with Cymber Metal’s phosphor bronze product range.

What Are Custom Phosphor Bronze Parts?

Phosphor bronze is a family of copper-tin-phosphorus alloys. Tin increases strength, hardness and resistance to wear. Phosphorus supports deoxidation during production and can also contribute to strength and wear performance.

The combination is useful for:

• Electrical spring contacts
• Retaining clips
• Relay components
• Connector terminals
• Bellows and diaphragms
• Thrust washers
• Wear plates
• Bushings
• Gears and pinions
• Precision shims
• Instrument components
• Custom-machined conductive parts

That broad application range creates a procurement problem: the term “phosphor bronze” does not define the product.

A complete specification should identify:

• Exact alloy designation
• Governing material standard
• Product form
• Temper or material condition
• Grain direction
• Required mechanical properties
• Electrical conductivity, when relevant
• Dimensional tolerances
• Surface and edge condition
• Manufacturing route
• Inspection and functional-test requirements

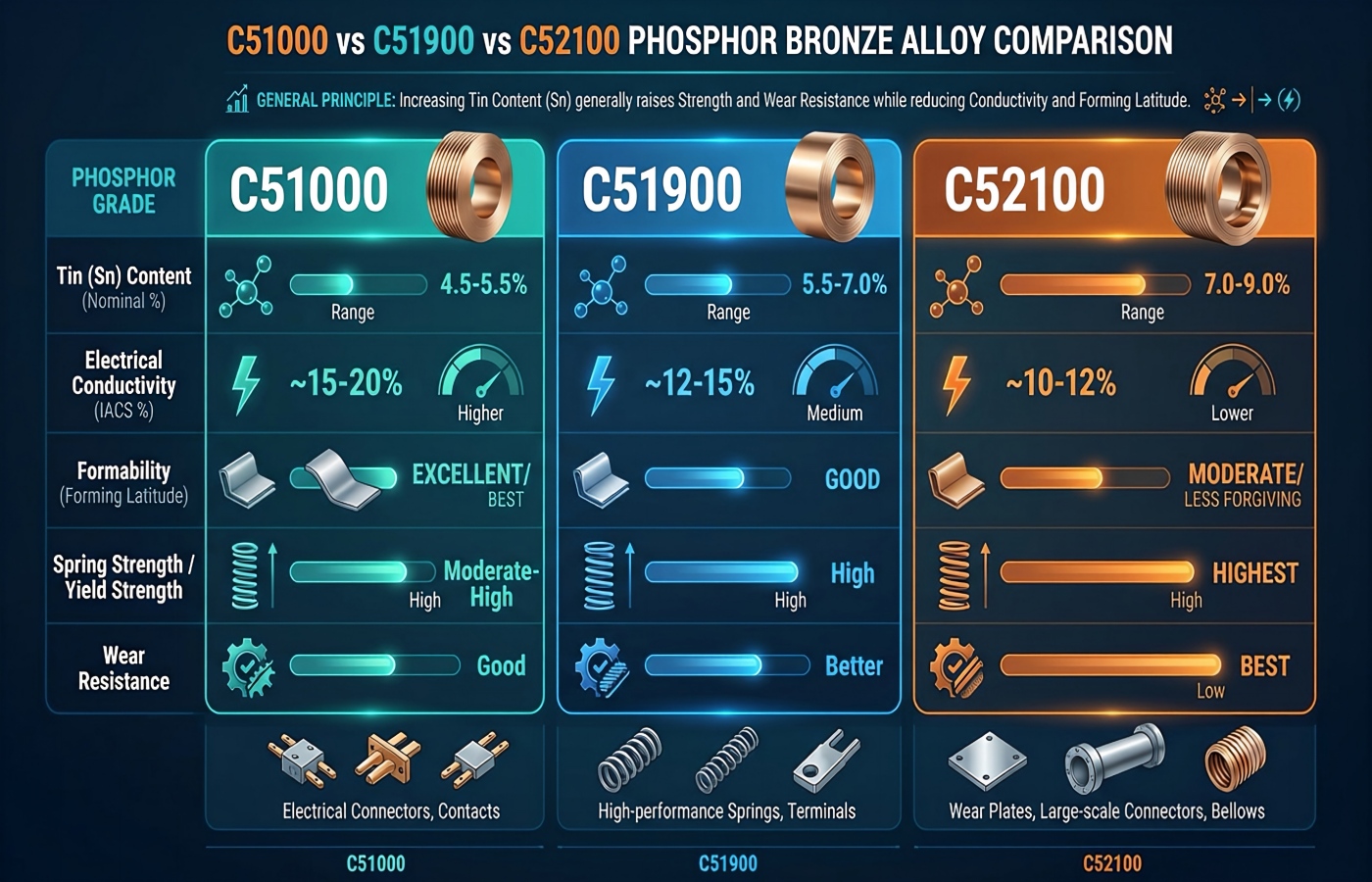

C51000 vs C51900 vs C52100

The three grades are often described as 5%, 6% and 8% tin phosphor bronzes. That shorthand is useful for preliminary selection, but the governing standard controls the actual composition limits.

The conductivity figures are condition-dependent industry references. They are not guaranteed acceptance values.

All three alloys typically have:

• Density near 8.8 g/cm³
• Elastic modulus commonly around 110–120 GPa
• Good corrosion resistance in many industrial environments
• Better strength and wear resistance than high-purity copper
• Lower electrical conductivity than pure copper and many high-conductivity copper alloys

When should you choose C51000?

C51000 copper is often a practical starting point for:

• Formed electrical contacts
• General spring clips
• Connector components
• Stamped washers
• Diaphragms
• Parts requiring a balance between forming and strength

It usually provides better forming latitude than higher-tin C51900 or C52100 in a comparable temper.

That matters when a component has tight bends, deep draws or several forming stages.

When should you choose C51900?

C51900 copper may be considered when the design requires:

• Higher spring strength
• Improved wear performance
• Better fatigue resistance
• Retention of contact force
• Moderate forming complexity
• Thin stamped components under repeated loading

C51900 is frequently positioned between C51000 and C52100. It offers additional strength without moving immediately to the highest-tin option.

When should you choose C52100?

C52100 copper is commonly evaluated for:

• Higher-load spring contacts
• Wear-resistant stamped components
• Heavily stressed clips
• Precision spring elements
• Thin components requiring high elastic limits
• Selected bushings, washers and wear parts

Higher strength does not make C52100 automatically better.

It may create:

• Greater springback
• More demanding bend-radius requirements
• Higher tool loading
• Greater sensitivity to edge quality
• More difficult dimensional control after forming
• Lower electrical conductivity
• Higher material and conversion cost

If C51000 meets the functional load and service-life requirement, selecting C52100 simply because it appears stronger may add manufacturing cost without creating useful customer value.



Higher Strength Does Not Mean a Stiffer Spring

This point is routinely misunderstood.

Spring stiffness is governed mainly by:

• Part geometry
• Material thickness
• Active length
• Width
• Elastic modulus
• Boundary and loading conditions

C51000, C51900 and C52100 have broadly similar elastic moduli. Changing from C51000 to C52100 will not transform the stiffness of an unchanged spring geometry in the way many buyers expect.

What the higher-strength material can provide is more usable elastic stress before permanent deformation.

That means C52100 may tolerate more load or deflection before taking a set—but only when the temper, grain direction, bend geometry and manufacturing process are properly controlled.

For a functional spring component, the drawing should state more than tensile strength:

• Load at a specified deflection
• Free height or free angle
• Maximum permitted permanent set
• Proof-load requirement
• Fatigue-cycle target
• Stress-relaxation conditions
• Service temperature
• Contact-force window
• Dimensional inspection after forming

A spring that passes chemistry and hardness inspection can still fail its load-deflection requirement.

Temper Controls the Real Spring Performance

The alloy number tells only part of the story.

Cold working increases strength and hardness, but it reduces formability. Depending on the product standard, buyers may encounter temper descriptions such as annealed, quarter-hard, half-hard, hard, extra-hard or spring temper. ASTM temper codes such as H02, H04 or H08 may also appear.

Do not copy a temper code from a competitor’s drawing without checking:

• Alloy
• Product form
• Material thickness
• Applicable standard
• Required strength
• Forming severity
• Final spring load
• Downstream heat exposure

Mechanical properties can change substantially between annealed and spring-temper material.

The correct purchase specification should define either:

1. An exact temper with the applicable standard; or
2. A measurable mechanical-property window supported by functional testing.

What happens if the part is heated after forming?

Heat from soldering, brazing, welding, stress relieving or coating can change the cold-worked condition.

If contact force matters, provide:

• Peak temperature
• Heating duration
• Number of thermal cycles
• Atmosphere
• Cooling method
• Required load after thermal exposure

A spring contact that performs correctly at room temperature may relax after an uncontrolled thermal process.

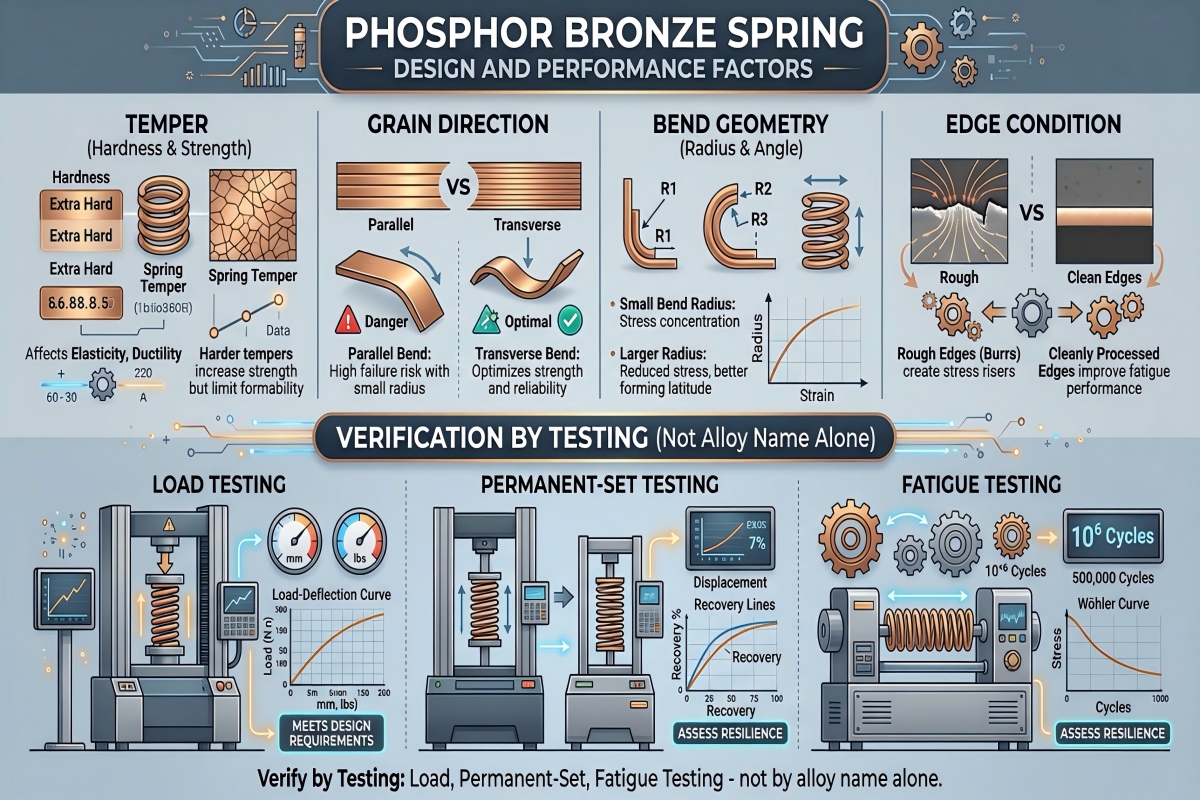

Grain Direction Can Decide Whether a Bend Survives

Rolled phosphor bronze strip has a directional grain structure.

For tight bends, the relationship between the bend line and rolling direction affects:

• Crack risk
• Minimum bend radius
• Springback
• Final angle
• Surface appearance
• Fatigue performance

A tight bend is generally easier when the bend line is perpendicular to the rolling direction, although the correct orientation must be confirmed against the alloy, temper and thickness.

The drawing should identify grain direction when it affects the component.

This creates a commercial tradeoff.

Rotating a stamped part on the strip may improve bend performance but reduce nesting yield. Improving strip utilization may place a critical bend in the poorer direction.

That is not a material problem. It is a design-for-manufacturing decision.

The buyer, die supplier and material supplier should review it before the production tool is built.

How Should Wear Resistance Be Evaluated?

“Wear resistant” is not an acceptance criterion.

Wear depends on the complete tribological system:

• Contact pressure
• Sliding velocity
• Lubrication
• Mating material
• Surface roughness
• Alignment
• Operating temperature
• Contamination
• Vibration
• Start-stop frequency
• Required service life

A useful first screening parameter is the pressure-velocity relationship:

PV = contact pressure × sliding velocity

The alloy that works in a low-speed lubricated bushing may fail in a dry, oscillating contact with abrasive contamination.

Does more tin always provide better wear resistance?

Higher tin content generally increases strength and hardness, which can improve wear resistance under selected conditions. That does not make C52100 universally superior.

C52100 may be unnecessary when:

• The contact load is moderate
• Lubrication is reliable
• Forming complexity is high
• Electrical conductivity matters
• C51000 already meets the life requirement

It may also be the wrong family entirely for severe bearing duty.

Depending on load, speed, lubrication and environment, the engineering review may need to compare phosphor bronze with:

• Leaded tin bronze
• Aluminum bronze
• Manganese bronze
• Copper-nickel-silicon alloys
• Sintered bronze
• Steel-backed bearing materials

Do not use one friction coefficient from an online table as a universal design value. Test the actual material pair under representative pressure, speed, lubrication and temperature.

Spring Parts and Wear Parts Need Different Acceptance Tests

This is why supplier comparison should not stop at an MTC.

The certificate confirms material data. It does not prove that the finished part performs its function.

CNC Machining vs Stamping

The correct manufacturing route depends on volume, geometry, tolerances and development risk.

CNC machining

CNC machining is often sensible for:

• Prototypes
• Low-volume parts
• Thick components
• Bushings and turned parts
• Complex three-dimensional geometry
• Parts with frequent design revisions
• Programs that cannot justify dedicated tooling

It avoids major die investment, but unit cost is usually higher and material utilization may be lower.

C51000, C51900 and C52100 can be machined, but they are not free-cutting brass. Buyers and machine shops should expect:

• Burr formation
• Workholding marks
• Chip-control challenges
• Tool adhesion
• Distortion in thin sections
• Additional deburring
• Surface-protection requirements

Sharp tools, positive cutting geometry, rigid workholding and controlled chip evacuation are important.

Projects requiring finished parts can be reviewed with Cymber Metal’s fine machining services.
