Published: May 31, 2026
y: Yanwei Hu, Technical Expert at Cymber Metal
Good morning everyone,
Yanwei Hu here from Cymber Metal.
Last quarter I sat with the procurement lead of a major European 5G and satellite comms manufacturer whose new 40 GHz phased-array antenna had failed qualification testing. The silver-plated copper feed network showed 1.9 dB excess insertion loss and PIM levels 12 dB worse than the prototype.
The supplier they had chosen looked perfect on paper — “ISO-certified, silver plating, fast quotes.” What actually arrived was 2.1 μm silver flash over oxygen-contaminated C11000 with Ra 1.8 μm surface finish and inconsistent thickness across the 600 mm plates. At 40 GHz that single decision turned a $2.8 million prototype program into a six-month delay.
In 2026, with 5G-Advanced, satellite constellations, and early 6G testbeds pushing frequencies past 50 GHz, the difference between a reliable silver-plated copper plate supplier and a risky one is measured in decibels, warranty claims, and lost market windows.
Today I’m giving you the exact 8-point audit checklist we use when RF and microwave customers ask us to qualify new silver-plated copper plate sources — and why Cymber Metal’s integrated model consistently passes every point on that list.
Why Supplier Choice Now Decides RF/Microwave System Performance

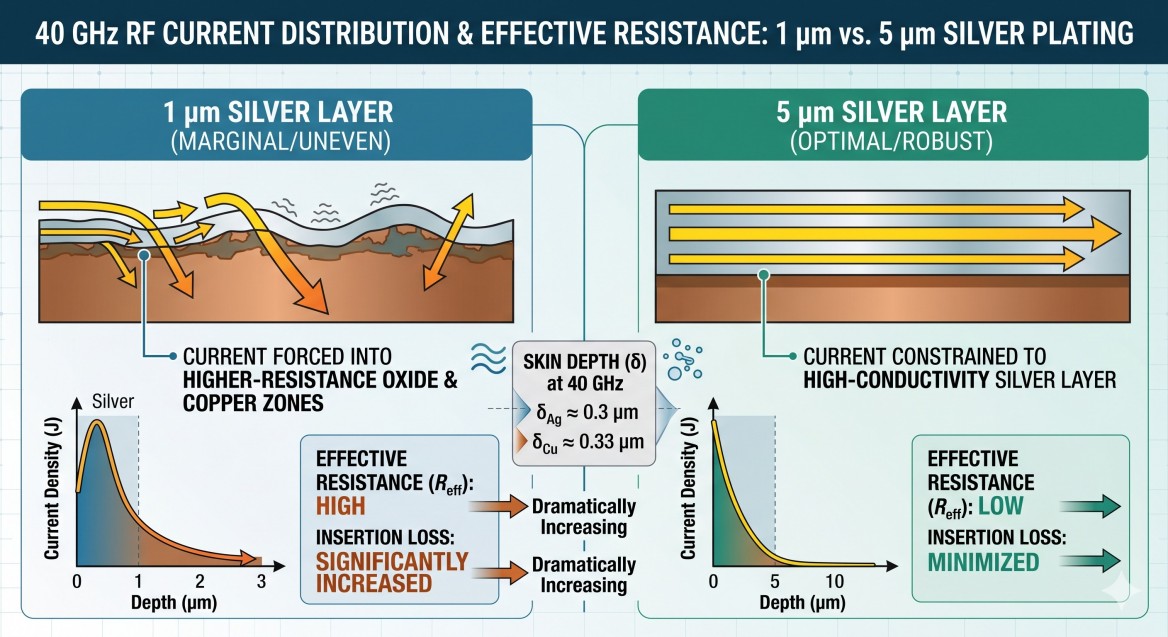

At millimeter-wave frequencies the skin depth in copper drops below 0.3 μm. Any variation in silver thickness, base-metal purity, or surface roughness directly multiplies into insertion loss, PIM, and long-term reliability failures.
Most engineers still treat silver-plated copper plate as a commodity. The best suppliers treat it as a precision process that starts with the right base material and ends with traceable, repeatable plating.
The 8-Point Supplier Audit Checklist for 2026
Use this before you release any purchase order for silver-plated copper plate destined for RF or microwave assemblies:
- Base Copper Purity & Traceability Demand C10100 (OF) or verified low-oxygen C11000 with ≤10 ppm oxygen. Ask for actual spectrometer reports, not just “electrical grade.”
- Silver Thickness Control & Uniformity Require 3–8 μm minimum on critical RF surfaces, measured by XRF on every batch with ±0.5 μm tolerance. Reject anything labeled “silver flash.”
- Pre-Plating Surface Preparation Electropolishing or precision mechanical polishing to Ra ≤0.4 μm before plating. Rougher surfaces increase loss even with perfect silver.
- Plating Process Capability Dedicated silver plating lines with real-time thickness monitoring, not outsourced job-shop work. Ask to see the plating line and bath chemistry controls.
- Post-Plating Treatment & Anti-Tarnish Controlled anti-tarnish and solderability coatings that survive 500+ hours salt spray without degrading RF performance.
- Full Material & Process Traceability Heat/lot numbers linked to MTR, silver thickness reports, and PIM test data for every plate.
- Advanced Alloy Capability Can they also process Silver-Copper Alloy (Ag-Cu) for ultra-low-loss or high-strength RF components? This separates commodity platers from true high-frequency specialists.
- Integrated Stock + Machining + Plating Do they hold deep spot inventory of the right base copper and finish the plated parts in-house? Or will you wait 8–12 weeks for mill + plating coordination?Why Most

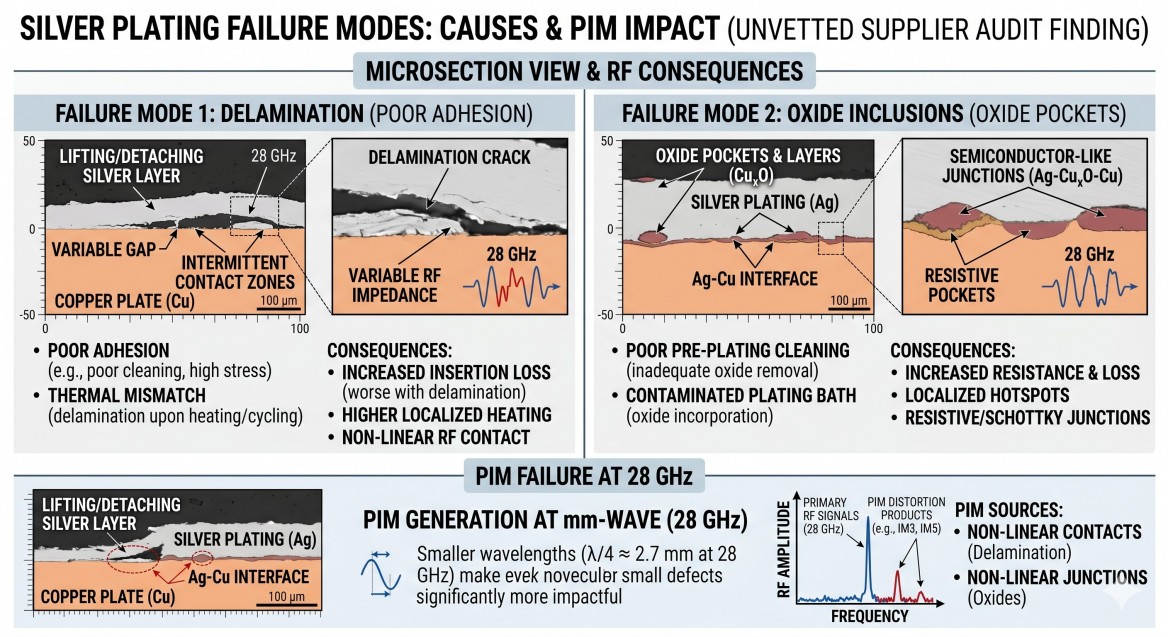

Why Most “Silver-Plated Copper” Suppliers Fail These Checks in 2026
- They plate over commercial-grade copper with 40–80 ppm oxygen.
- They use flash plating (1–2 μm) that wears through in months.
- They outsource plating and lose control of thickness uniformity on large plates.
- They cannot handle Silver-Copper Alloy or other high-end RF materials.
-
Cymber Metal’s Integrated Advantage — We Pass Every Point on Your Checklist

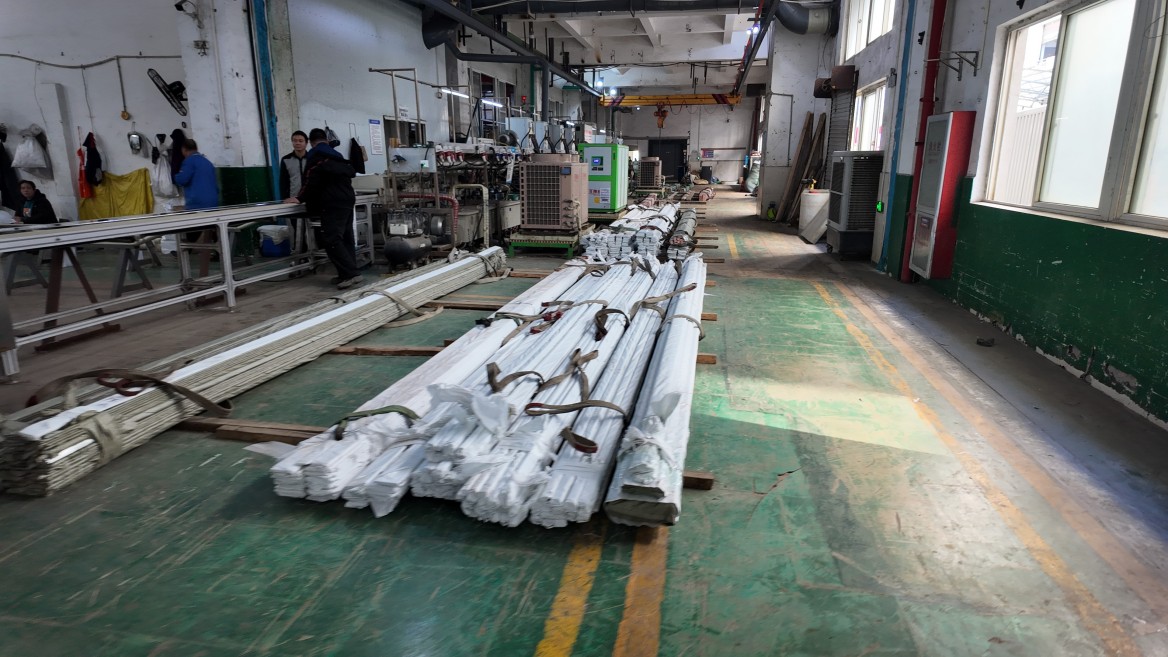

Cymber Metal operates two dedicated CYMBER Silver Plating Workshops inside our Zhejiang facility. We control the entire chain:
- 3,200-ton spot warehouse stocked with verified C10100 and C11000 oxygen-free copper plate ready for immediate plating
- Precision electropolishing to Ra ≤0.4 μm before silver deposition
- Real-time XRF thickness control (2–10 μm) with batch reports
- Full capability to process Silver-Copper Alloy (Ag-Cu) and other advanced RF materials alongside standard brass and pure copper
You can explore our complete pure copper foundation here: Pure Copper Products
See our ultra-low-resistance silver-plated busbars engineered for 5G and microwave: Ultra-Low-Resistance Silver Plated Copper Busbars
And our high-conductivity silver-coated precision components: High-Conductivity Silver Coated Copper Parts
We also offer advanced Silver-Copper Alloy processing for the most demanding RF applications: Silver-Copper Alloy (Ag-Cu)
Check real-time availability across our strategic warehouse network here: CYMBER Ready Stock Warehouses
See both of our electroplating workshops in action here: CYMBER Busbar Plating Shop
Last quarter we delivered 14 tons of silver-plated copper plate and 38,000 precision RF components to three major 5G and satellite programs with average lead time of 8 calendar days — including full silver thickness maps, PIM data, and salt-spray certification. Zero qualification failures.
-
Our Complete Material Capability for RF/Microwave Manufacturers
Beyond standard brass and pure copper, we routinely handle high-precision advanced alloys:
- Brass Alloys
- Pure Copper Products
- Silver-Plated Copper Plate & Busbars
- Silver-Copper Alloy (Ag-Cu) for ultra-low-loss RF components
Final Thoughts
In 2026 the RF/microwave industry can no longer afford to treat silver-plated copper plate as a low-risk commodity. The supplier you choose today determines whether your next 5G base station, satellite payload, or test system meets its insertion-loss and PIM targets — or becomes a costly field failure.
Use the 8-point checklist above on every new source. Then partner with a supplier that already passes every point and can also process advanced materials like Silver-Copper Alloy when your design demands it.
Cymber Metal’s 3,200-ton warehouse + two dedicated silver plating workshops + full capability across brass, pure copper, silver-plated copper, and Silver-Copper Alloy was built exactly for RF and microwave manufacturers who refuse to compromise on performance or schedule.
Ready to qualify your next silver-plated copper plate source with confidence?
Send us your drawing, frequency band, required silver thickness, and any advanced alloy requirements. We’ll provide full audit documentation, sample plates, and a committed delivery date in one reply.
-
Contact Us for Immediate RF/Microwave Silver-Plated Copper Support
Post time: May-31-2026
