Published: February 13, 2026
By: Zhen Liu, Pure Copper Technical Expert at Cymber Metal
Hi everyone—Zhen Liu here, the pure copper specialist at Cymber Metal. Pure copper tubes are one of my favorites—they combine the unbeatable conductivity and corrosion resistance of copper with the formability needed for plumbing, HVAC, and industrial systems. Whether straight, square, round, or fitted with accessories, these tubes handle water, refrigerants, and gases without failing over decades.
In 2026, with tighter regulations on lead-free materials and growing demand for efficient heat transfer in EVs and renewables, pure copper tubes are more relevant than ever. We’ve produced miles of them at Cymber Metal for plumbing and cooling projects. This guide shares what we’ve learned: grades, applications, challenges, and tips to get reliable, long-lasting tubes.
Pure Copper Tube Grades and Properties
Grade Selection Table
| Grade | Purity | Oxygen Content | Key Strengths | Best Tube Types | Conductivity (% IACS) | Relative Cost |
|---|---|---|---|---|---|---|
| C12200 (DHP) | 99.90% | Phosphorus deoxidized | Excellent corrosion resistance, weldable | Straight, round, square tubes | 85–95 | Low |
| C10200 (OF) | 99.95% | Oxygen-free | High ductility, thermal performance | Round and custom drawn tubes | 101 | Medium |
| C11000 (ETP) | 99.90% | Low oxygen | Balanced cost, good formability | General straight and fittings | 100–101 | Low |
Quick Tip: DHP (C12200) for plumbing tubes—phosphorus makes it resistant to hydrogen embrittlement in water systems.
Key Applications of Pure Copper Tubes
Pure copper tubes excel where flow, heat, and longevity matter.
Plumbing and Water Supply Systems
Straight and round tubes for potable water—lead-free and antimicrobial.
HVAC and Refrigeration
Coils and straight tubes for refrigerant lines—superior thermal transfer.
Industrial Heat Exchangers
Round and custom tubes for shell-and-tube systems—efficient cooling.
Medical Gas and Instrumentation
Precision drawn tubes—clean, reliable for oxygen lines.
EV Thermal Management
Custom tubes for battery cooling loops—high conductivity for heat removal.
Challenges in Manufacturing Pure Copper Tubes
Common Issues
- Wall thinning in drawing → Risk of cracks or leaks.
- Surface oxidation → During annealing.
- Burrs in cutting → Affects assembly.
Practical Shop Solutions
Engineering Experience: In our pure copper tube projects at Cymber Metal for HVAC coils, wall thinning was an issue on tight bends. We optimized drawing dies and lubricant—achieving uniform 0.8 mm walls with no cracks, even on long runs.
Pro Tip: Anneal in controlled atmosphere—prevents scale and keeps the bright copper look.
Design Considerations & Tips
- Wall Thickness: 0.5–3 mm for pressure rating.
- Bends: Minimum radius 2x diameter to avoid kinking.
- Ends: Flare or bead for fittings.
- Cleaning: Internal flush for medical/plumbing.
Tooling & Parameter Recommendations
- Drawing Dies: Tungsten carbide for longevity.
- Example Parameters (Drawing C12200):
- Reduction: 20–30% per pass
- Speed: Controlled for heat
- Lubricant: Heavy-duty emulsion
- Cutting: Shear or saw—deburr immediately.
-

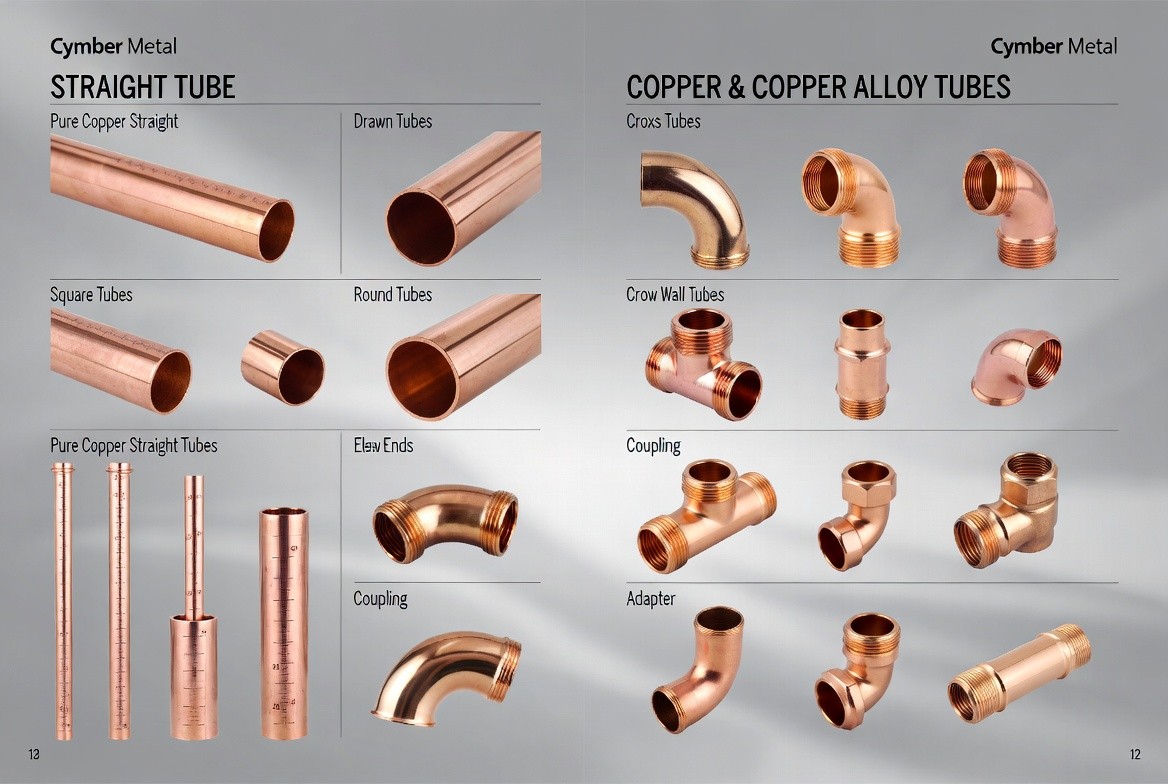

Common Deliverable Pure Copper Tube Forms

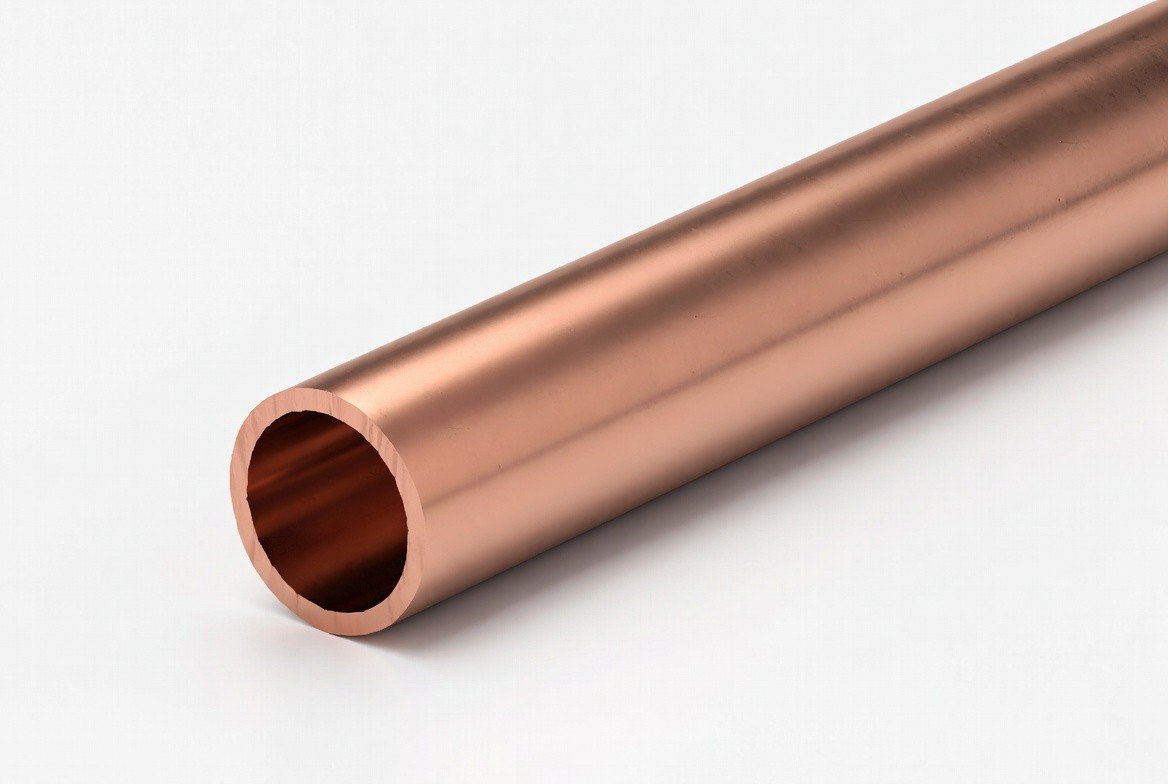

- Straight tubes for long runs
- Round tubes for coils and heat transfer
- Square tubes for structural or aesthetic

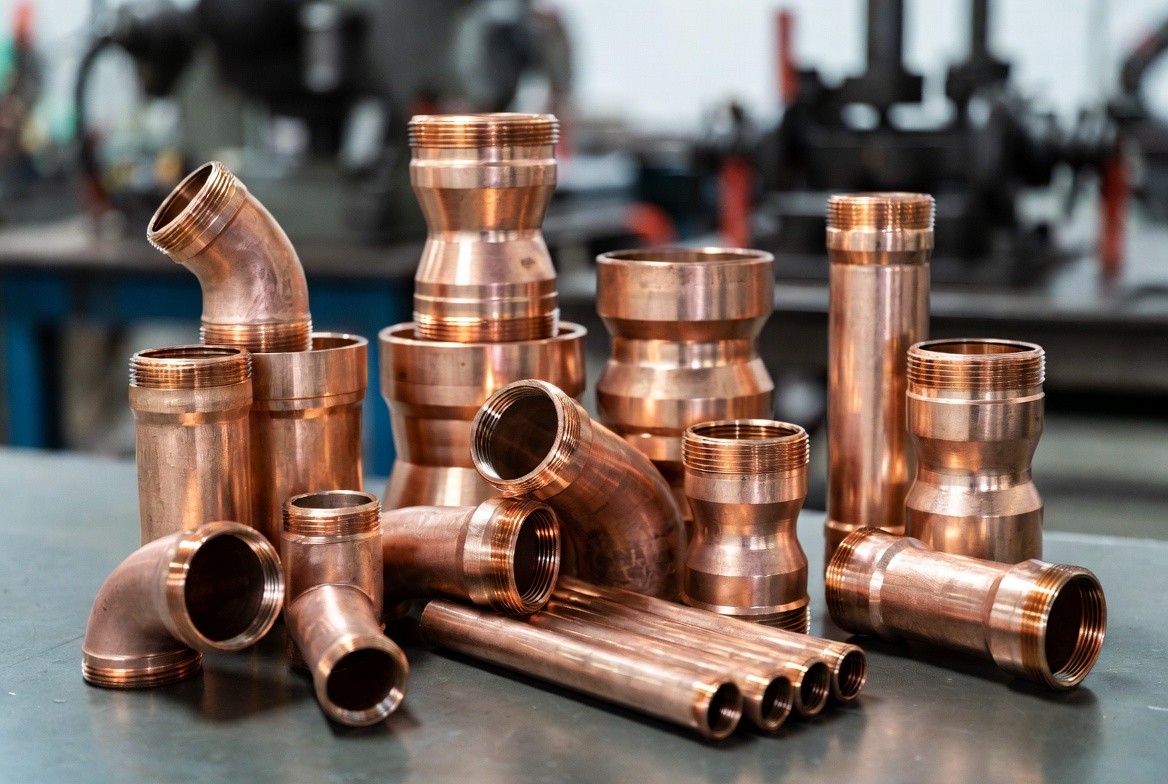

- Custom fittings and accessories
- Bent or flared ends
Real-World Applications
- Domestic and commercial plumbing
- Air conditioning coils
- Industrial heat exchangers
- Medical oxygen delivery
- EV battery cooling channels
Cost & Sustainability Factors in 2026
Moderate pricing (~$17–20/kg) with high recyclability—scrap tubes easily remelted.
Final Thoughts
Pure copper tubes solve flow, heat, and corrosion challenges in systems where reliability is everything—from home plumbing to EV cooling.
At Cymber Metal, we stock and produce a full range of pure copper tubes:
- Pure Copper Straight Tubes
- Pure Copper Square Tubes
- Pure Copper Round Tubes
- Pure Copper Tube Fittings

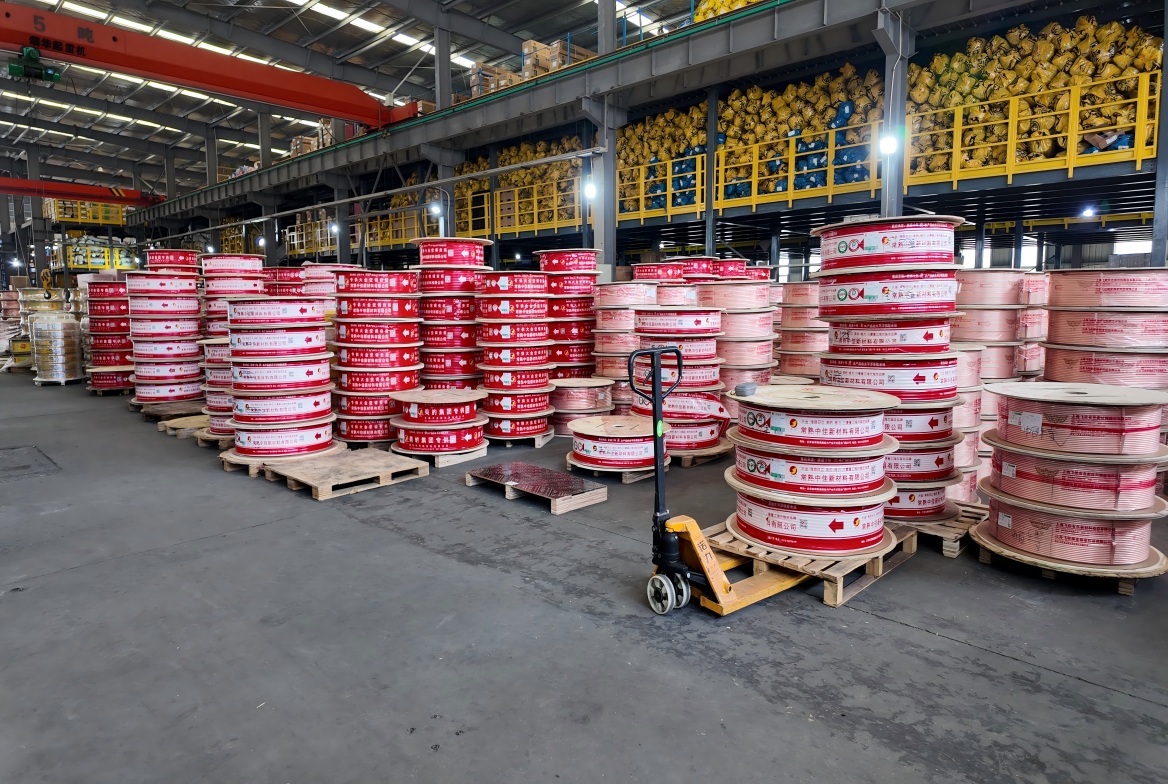

Visit our CYMBER Professional Copper Tube Warehouse to see our full stock and capabilities.
If you’re sourcing pure copper tubes—whether straight, square, round, fittings, or custom—Cymber Metal offers stocked material, precise drawing, and flexible volumes.
Ready to discuss your project? Download our pure copper tube catalog or contact our team.
