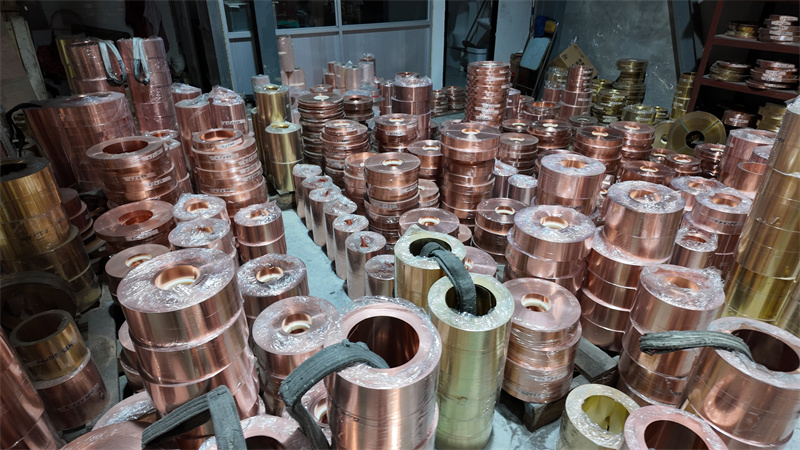

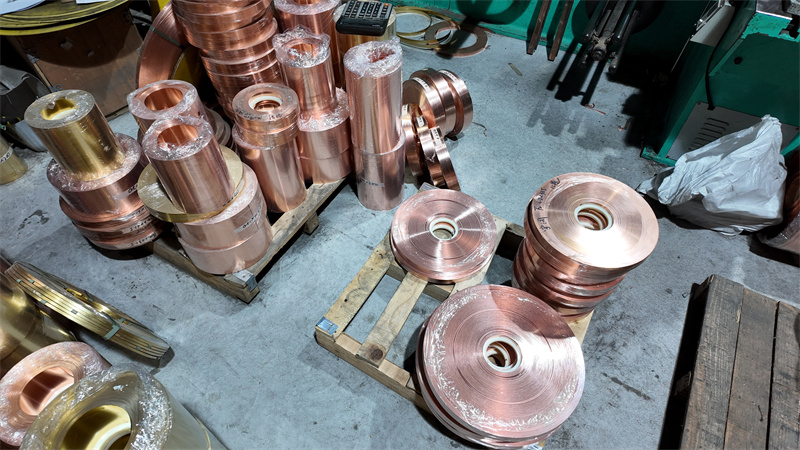

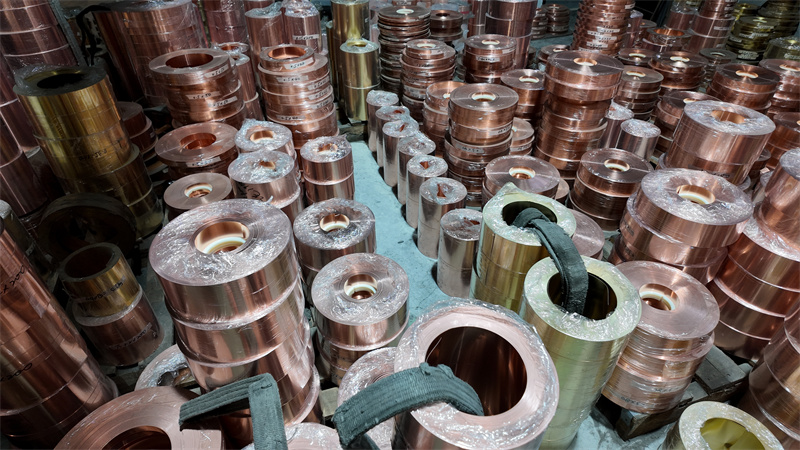

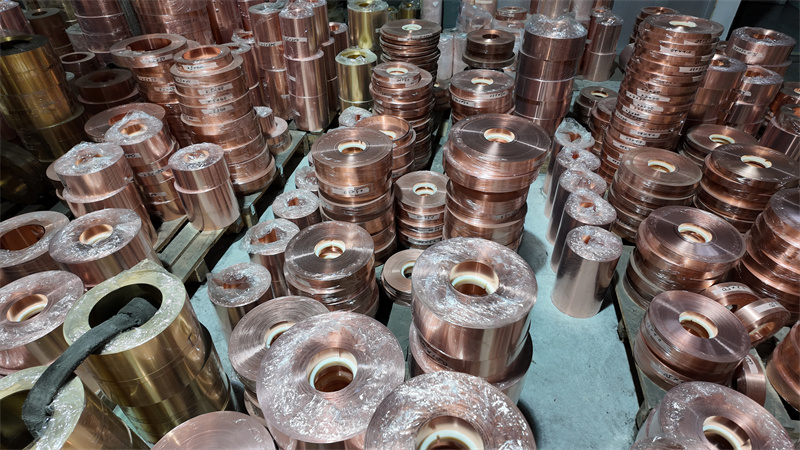

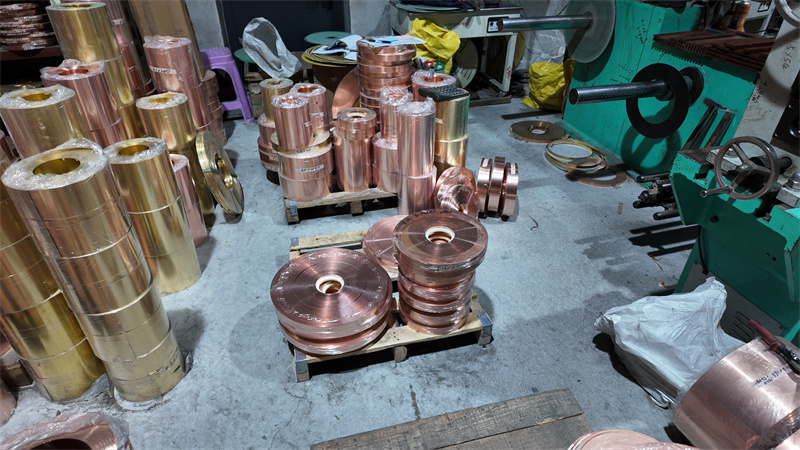

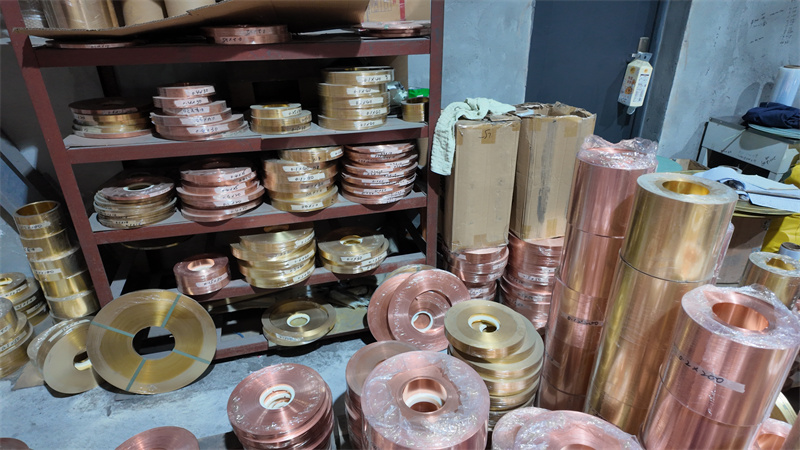

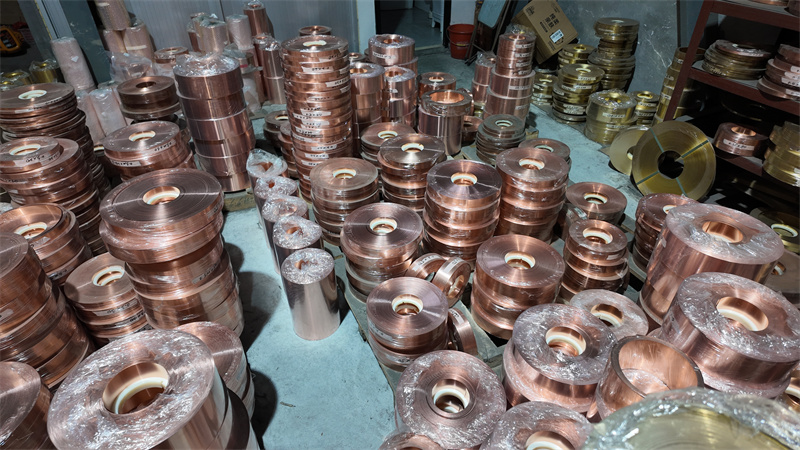

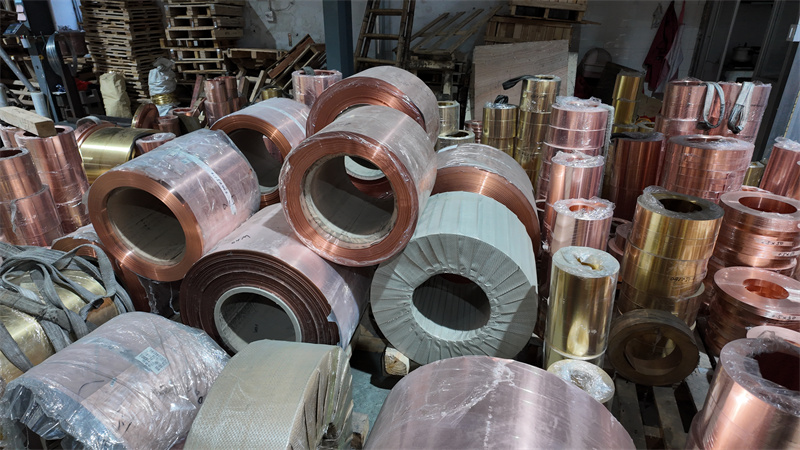

Overview of CYMBER Copper Strip Warehouse
Located in the heart of Zhejiang’s industrial zone, CYMBER Professional Copper Strip Warehouse specializes in storage and high-precision processing of copper and copper-alloy strips. Covering over 15,000 square meters, the facility operates complete automated slitting, traverse cutting, surface inspection, and testing lines, delivering end-to-end solutions from master coils to finished narrow coils for electrical power, new-energy vehicles, electronic connectors, and thermal management sectors.
As one of the few specialized warehouses in East China equipped with multiple fully automated high-precision copper slitting lines, CYMBER places processing accuracy, delivery reliability, and material protection as top priorities, ensuring every narrow coil feeds directly into customers’ high-speed stamping or progressive die operations.
Core Equipment: Three Domestic High-Precision Automatic Slitting Lines
The warehouse operates three fully automated domestic slitting lines, each capable of handling maximum width 1650 mm, thickness 0.08–3.0 mm, and line speed up to 350 m/min. The three lines provide mutual backup and capacity expansion, supporting genuine 24/7 production when required.
Key specifications:
• Hydraulic tool locking, double-disc staggered shearing, burr height ≤ 0.01 mm
• Slitting tolerance ±0.05 mm; width consistency routinely ±0.03 mm (exceeding China Grade-1 standard)
• Closed-loop automatic tension control, post-slitting tension variation per strand ≤ 3 %
• Full variable-frequency drive, compatible with C10200, C11000, C26800, C5191, C7025 and other alloys
Complete Automatic Copper Coil Slitting Process
1.Master Coil Loading & Auto-Centering → 15-ton hydraulic coil car + photoelectric servo EPC, centerline alignment error < 0.1 mm
2.Uncoiling & Tension Establishment → Magnetic powder brake + closed-loop servo control, 50–1500 N precisely adjustable
3.Precision Slitting → Imported tungsten carbide or PM HSS discs, spindle runout ≤ 0.002 mm, spacers ground to ±0.001 mm, real-time wear compensation
4.Edge Trim Handling → Independent dual-head scrap winders; trim returned as coils or crushed on-site
5.Rewinding & Tension Isolation → Individual dancing-roll isolation per strand, pneumatic mandrels + auto corner protection, face alignment ≤ ±0.3 mm
6.Automatic Cut-Off & Packaging → Decelerate → cut → paper wrap → label → discharge in 45 seconds
Complete Automatic Copper Coil Slitting Process
• 0.10 × 32.0 mm C7025 Cu-Ni alloy, width tolerance ±0.02 mm, burr ≤ 0.008 mm, delivered >300 tons consecutively for high-end automotive connectors with zero batch-related claims. • 0.80 × 120.0 mm T2 pure copper, width ±0.03 mm, zero longitudinal scratches, used for high-current busbar fabrication. • 0.15 × 19.0 mm C2680 brass, 20 strips in parallel, telescoping ≤ 0.5 mm, supplied for 5G base-station RF cable braiding.
Quality Assurance System
Every finished narrow coil undergoes: • Component re-verification using German handheld spectrometer • 20-point width measurement per coil with micrometers • Burr height inspection via profile projector • Surface inspection under Class-A light source • Selective tension uniformity testing
All data are attached in the “CYMBER Slitting Quality Certificate,” fully traceable to master coil heat number, production timestamp, operator, and tooling set.
Conclusion
With three state-of-the-art high-precision automatic slitting lines at its core, CYMBER Copper Strip Warehouse has established complete master-to-narrow coil processing capability. We understand that for industrial customers consuming thousands of tons annually, the true value lies in batch-to-batch dimensional stability, zero surface defects, and predictable lead times. We will continue to invest in equipment and process refinement to remain a benchmark provider in China’s copper strip slitting sector.
Post time: Dec-10-2025
